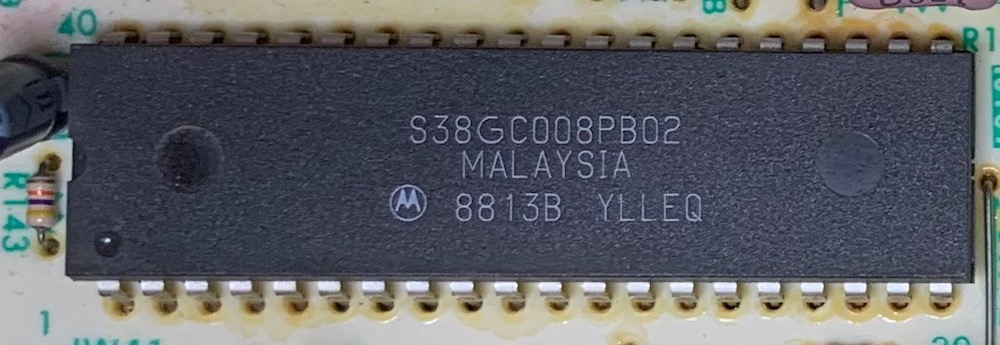

Pin
|
Name
|
Type
|
Notes
|
1
|
BLCK
|
Output
|
Bit Clock
|
2
|
Audio_Data
|
Output
|
2's compliment Serial Data
|
3
|
WCLK
|
Output
|
88.2KHz
|
4
|
LRCLK
|
Output
|
44.1KHz
|
5
|
CDCLK
|
Input
|
8.4672MHz - Required for SND Test
|
6
|
NC
|
|
No Connection
|
7
|
NC
|
|
No Connection
|
8
|
NC
|
|
No Connection
|
9
|
NC
|
|
No Connection
|
10
|
GND
|
PWR
|
|
11
|
Mon_out
|
Input
|
Input to ASIC from Monitor
|
12
|
Mon_in
|
Output
|
Output to Monitor
|
13
|
Mon_in
|
Output
|
Output to Monitor
|
14
|
Mon_clk
|
Input
|
5Mhz
|
15
|
NC
|
|
No Connection
|
16
|
NC
|
|
No Connection
|
17
|
NC
|
|
No Connection
|
18
|
From_KB
|
Input
|
nonADB Keyboard input
|
19
|
TO_KB
|
Output
|
nonADB Keyboard output
|
20
|
GND
|
PWR
|
|
21
|
NC
|
|
No Connection
|
22
|
NC
|
|
No Connection
|
23
|
NC
|
|
No Connection
|
24
|
NC
|
|
No Connection
|
25
|
NC
|
|
No Connection
|
26
|
NC
|
|
No Connection
|
27
|
NC
|
|
No Connection
|
28
|
NC
|
|
No Connection
|
29
|
|
|
|
30
|
|
|
|
31
|
GND
|
PWR
|
|
32
|
|
|
|
33
|
|
|
|
34
|
RDC
|
|
|
35
|
TDC
|
|
|
36
|
TDD
|
|
|
37
|
TDE
|
|
|
38
|
|
|
|
39
|
VDD
|
PWR
|
5V
|
40
|
VDD
|
PWR
|
5V
|
