NeXT Dimension Restoration


Replacing Capacitors:

There are a couple different revisions of the Dimension board. The main difference is the capacitors near the input ports.


NeXT Dimension Board (Revision: PN-1508.AD)

Capacitance Voltage
Tolerance
Temp
Dimensions (mm)
Part #
Quantity
Locations
Notes
47 uF
16 VDC
20%
85C
1206 - 1.6 x 3.2
C3216X5R1C476M160AB
6
GREEN
Ceramic Replacement
220 uF
25 VDC
20% 85C 8 x 11.5
UVR1E221MPD
1
Yellow

220 uF
4 VDC
20%
85C
1206 - 1.6 x 3.2
7
RED






Total
14

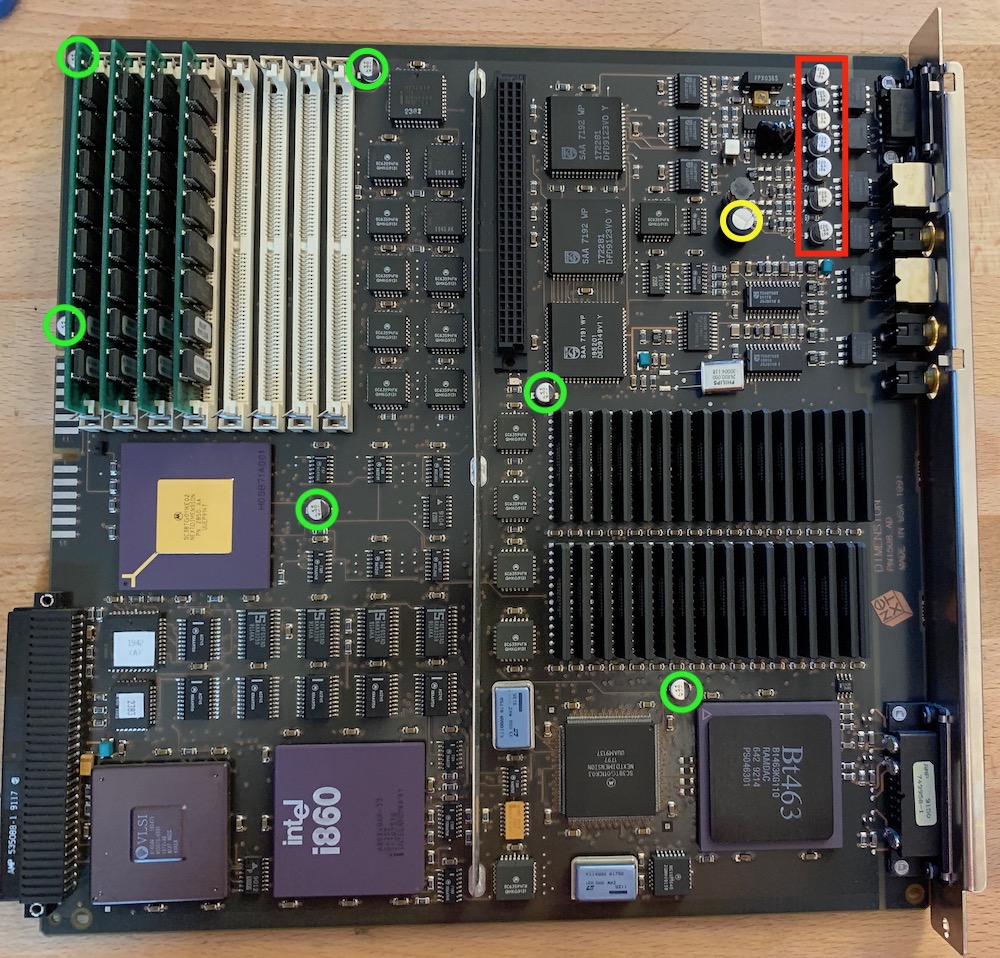

NeXT Dimension Board
